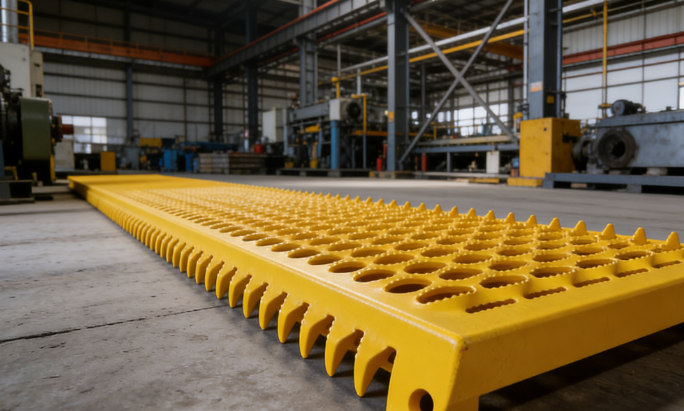

4mm Thick Crocodile Mouth Punched Anti-Slip Hole Plates: Why Thickness Determines Real Safety Performance

When selecting crocodile mouth punched anti-slip hole plates, many buyers focus on surface pattern, hole shape, or price. However, in real industrial applications, one factor often determines whether a platform remains safe or becomes a hidden risk: thickness.

Among all options, 4mm thickness is often considered a standard or safe choice. But this assumption can be misleading. In some environments, 4mm is sufficient and reliable. In others, it becomes the exact point where failure begins.

Real accident data from OSHA and safety research from NIOSH show that many slip, collapse, and puncture incidents are not caused by missing anti-skid systems, but by systems that were incorrectly specified for real working conditions.

At perforatedmetalpanel.com, we regularly work with contractors and distributors who initially chose 4mm plates based on general recommendations, only to find that performance degraded or structural issues appeared after installation. The lesson is clear: thickness is not a number — it is an engineering decision.

Why 4mm Thickness Is a Critical Threshold: The Balance Between Strength, Weight, and Fatigue

4mm crocodile mouth anti-slip plates are widely used because they offer a balance between strength, weight, and cost. They are strong enough for many standard walkways and platforms, while still being manageable for installation and transportation.

However, the problem is that 4mm often sits at a threshold condition.

Below this thickness, plates clearly lack structural strength. Above this thickness, plates gain additional safety margin. At 4mm, the plate may either perform well or gradually fail depending entirely on the application.

This is because perforated plates behave differently from solid materials. The punching process removes material and creates stress concentration zones. The formed crocodile teeth further modify how the plate carries load.

Under real conditions, especially in industrial walkways:

• Repeated foot traffic introduces cyclic loading

• Equipment movement adds dynamic stress

• Vibration accelerates fatigue processes

At 4mm thickness, the plate may initially resist deformation. But over time, micro-deformation can occur, especially if support spacing is large or load is higher than expected.

Once deformation begins, two things happen:

• Structural stiffness decreases

• Anti-slip teeth begin to flatten faster

This creates a dangerous combination: reduced structural integrity and reduced surface grip.

Real Problem Scenario: When 4mm Plates Become a Hidden Risk

One of our clients, an industrial contractor, installed 4mm crocodile mouth anti-slip plates on a production walkway. Initially, everything appeared normal. The surface provided good grip, and the structure felt stable.

After several months, however, workers reported that the surface felt less secure, especially in areas exposed to oil and frequent traffic.

Upon inspection, several issues were identified:

• The tooth height had reduced due to wear and deformation

• The plate showed slight deflection between supports

• Oil contamination reduced friction on already worn surfaces

None of these factors alone would have caused immediate failure. But together, they created a system that had lost its safety margin.

The key issue was not that 4mm plates were wrong, but that they were used at the limit of their capability without sufficient margin for real conditions.

Engineering-Based Solutions: When 4mm Works — and When It Doesn’t

The correct question is not Is 4mm good or bad? The correct question is: Under what conditions is 4mm sufficient?

From our experience, 4mm plates perform well when:

• Load is moderate and predictable

• Support spacing is properly designed

• Environment is relatively dry and clean

• Traffic intensity is not extreme

However, 4mm becomes risky when:

• High traffic or heavy equipment is present

• Vibration or dynamic loading is significant

• Oil, water, or contaminants are common

• Maintenance and inspection are limited

In these cases, increasing thickness to 5mm or adding reinforcement can significantly improve long-term performance.

Beyond thickness, other factors must also be considered:

• Tooth geometry for long-term grip

• Material selection for corrosion resistance

• Surface condition for friction stability

This is why we always guide clients to evaluate thickness together with application conditions. A correct match between plate design and real use environment is what ensures safety.

From Standard Product to Reliable Solution: How We Support Our Clients

At Guangzhou Panyu Jintong Wire Mesh Products Factory, we are not only a perforated metal manufacturer. We are a source factory that focuses on helping clients avoid common mistakes in anti-skid plate selection.

Our customers include perforated metal distributors, construction contractors, and industrial project teams. Many of them come to us after encountering issues with previous suppliers who only provided standard specifications without understanding real use conditions.

Our approach is based on practical problem-solving:

• We analyze load conditions and recommend appropriate thickness

• We consider environment when selecting materials

• We design for long-term performance, not just initial appearance

• We ensure consistent manufacturing quality across batches

This reflects our working style: fast response, practical customization, and a focus on real application scenarios.
