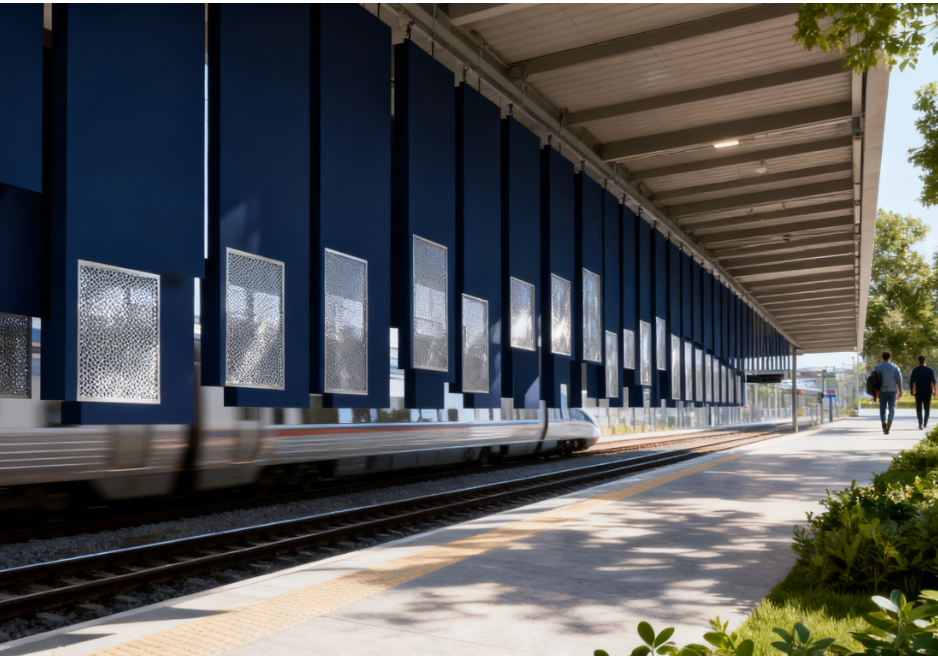

Jintong’s Triple-Function Perforated Façade offers an all-in-one envelope solution that provides solar shading, passive ventilation, and acoustic reduction—without the need for added structural load. Tailored for city-facing walls, high-traffic corridors, or noise-sensitive buildings, this system is engineered to optimize comfort and performance through smart, modular cladding.

System Capabilities:

• Panel Composition:
  • 1.5mm galvanized or anodized aluminum
  • Microperforated with 9% open area for airflow/light filtration
  • Anti-glare powder-coated finish (PVDF optional for heavy UV zones)

• Ventilation Channel:
  • Built-in rear cavity (20–40mm) with passive upward air flow
  • Promotes static pressure cooling without fans

• Sound Control Layer (Optional):
  • Integrated acoustic foam or mesh on key elevations
  • Dampens mid-frequency urban noise (speech, transit) by 8–12 dB

• Thermal & Acoustic Results (Case: Warsaw Office Retrofit):
  • dBA reduced from 72.4 → 62.1 (rush hour average)
  • Internal temperature drop of 6.7°C
  • Ventilation improved by 18% through measured air transfer
  • Achieved compliance with ASHRAE 2025 Passive Retrofit Standard

• Applications:
  🏢 Urban mid-rise offices
  🏫 Schools or clinics near roads/rails
  🛠️ Retrofit façades for government or public buildings
  🏠 High-density residential towers

Advantages:
✔ Combines three critical envelope functions in one lightweight panel
✔ No need for separate shading fins or acoustic tiles
✔ Ideal for retrofits—minimal added structural load
✔ Quick-install modular system with clip mounting rails
✔ Maintains architectural cleanliness with minimal external clutter
✔ Durable and low-maintenance across humid, polluted, or UV-exposed zones

Planning & Engineering Support:
Send us your elevation drawings and performance goals—our engineers will return a full analysis including sun study, airflow path, and dBA prediction within 3 days.
