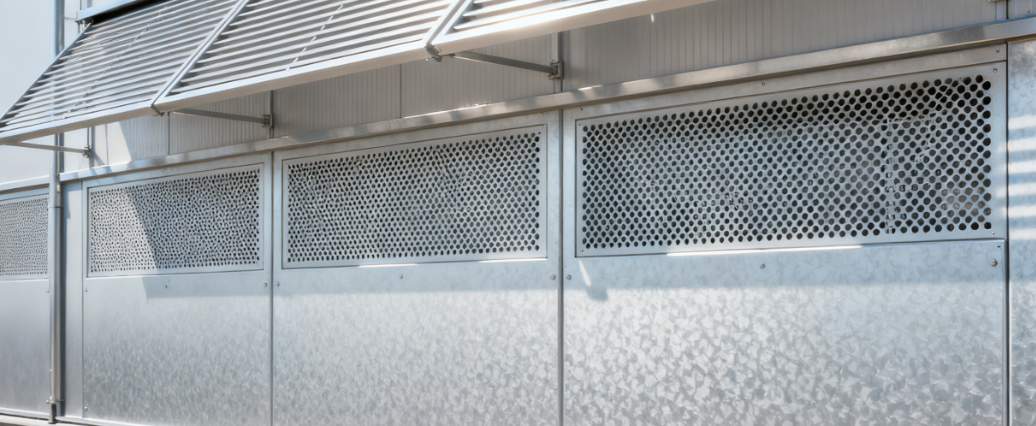

Passive Venting Retrofit Kit with Aluminum Sunshade Panel Integration: Enhancing Thermal Balance and Airflow Efficiency
Product Description
Material: 6063-T6 Aluminum Alloy
Panel Thickness: 2.5 mm
Panel Size: 1200 mm × 2600 mm
Finish: PVDF coating, RAL 9007 (Silver Grey)
Vent Slots: 15 mm wide, 14% open area
Cavity Depth: 80 mm for stack-effect airflow
Wind Load Resistance: Rated to 1.6 kN/m² (ASCE 7-22, ASTM E330)
UV Resistance: ASTM G154 tested, >92% gloss retention after 3000 hours
Thermal Reduction: Surface temperature drop from 61 °C to 44 °C
Air Exchange Rate: Increased from 0.4 ACH to 1.2 ACH
Installation Type: Modular retrofit, surface-mounted
Functionality:
Passive air ventilation via buoyancy flow
Radiant solar shielding
Corrosion and dust resistance
Reduced HVAC runtime by 22%
Suitable for industrial façades, annexes, and container walls
