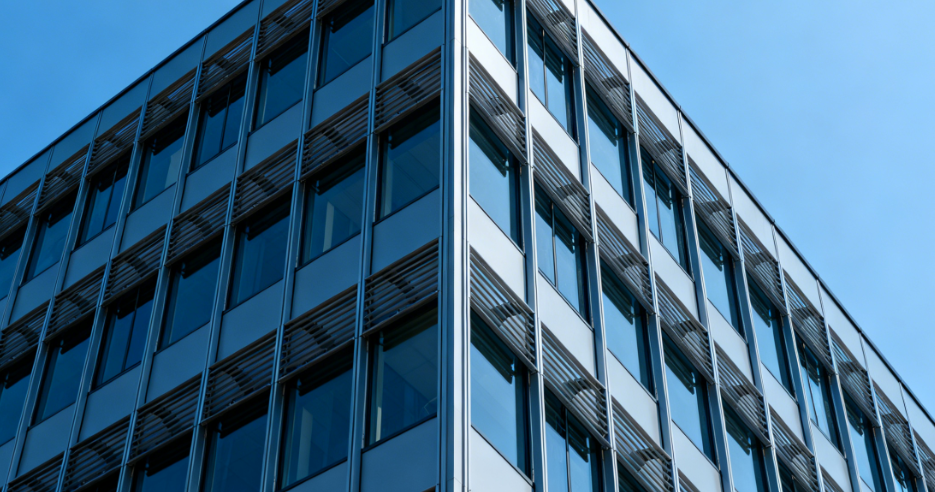

Peripheral Wall Shading System with Metal Sunshade and Passive Vent Panels for Industrial Energy Optimization
Product Description (Product Attributes)
Material: 2.8 mm marine-grade aluminum, PVDF-coated (ISO 12944-6 certified)
Panel Type: Perforated aluminum sheets with 38% open area
Ventilation Design: 30° angled sunshade blades + passive vertical airflow corridors
Cavity Depth: 200 mm for vertical convection airflow
Structural Performance: Wind load resistance verified to NFPA 5000; corrosion durability verified by ASTM B117
Acoustic Compliance: Sound attenuation tested to Acoustical Society of America façade noise standards
Energy Impact:
Surface temp reduction: 11.8°C
HVAC energy cut: 18.9%
Humidity stabilization: +14%
PMV thermal comfort improvement: +1.6 → +0.4
Simulation Tools: EnergyPlus CFD modeling; ASHRAE 90.1 + 55 compliant
Sustainability: LEED EQ compliant, supports USGBC circular disassembly, rain-clean PVDF self-wash
Installation: Modular facade panels integrated to existing architectural lines, low-maintenance, rapid retrofit capability
Applications: Electronics plants, logistics centers, perimeter façades in high-radiation zones
