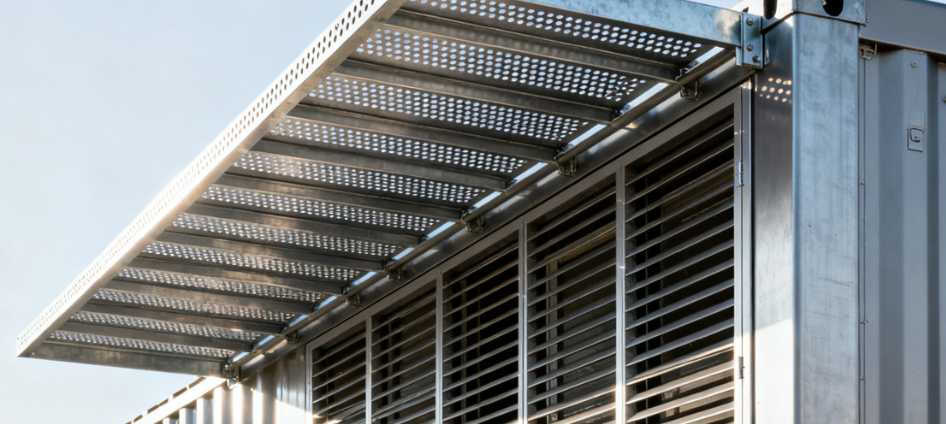

Product Description (Product Attributes)

Material: 3 mm thick 5052-H32 perforated aluminum panels
Panel Size: 1200 mm × 3000 mm
Finish: RAL 9006 anodized silver (ISO 12944-6 C5-M corrosion protection)
Open Area: 38% perforation with chevron-angled airflow baffles
Ventilation Cavity Depth: 180 mm between sunshade and concrete wall
Airflow Rate: Average 0.6 m/s convective vertical flow (NREL THERM modeling)
Thermal Relief: Surface temperature reduction from 66 °C to 52.4 °C
Acoustic Performance: 4.3 dBA noise attenuation (ASA STC 35 compliant)
Structural Reinforcement: Panel system doubles as edge stiffener and stress reducer
Wind Resistance: Sustains gusts up to 140 km/h with <1.2 mm panel deflection (ASCE envelope standard)
Energy Efficiency: U-value improved by 0.19 W/m²·K, saving 9.1 MWh annually
Fire Safety: ASTM E84 Class A flame spread
Anchoring System: Galvanized steel subframes (ASTM A500 Grade B) + stainless steel bolts (ASTM F1554)
Drainage: Built-in channels prevent water accumulation and condensation
Installation Efficiency: Modular, serviceable, and replaceable panels for rapid edge retrofits
Durability: Maintenance interval extended to 6 months; paint lifespan tripled from 3 to 9 years
Use Cases: Precast concrete boundary walls, edge cladding for industrial or logistics facilities
Performance Validation: CFD, IR scanning, wind tunnel, thermal cycling, acoustic modeling
