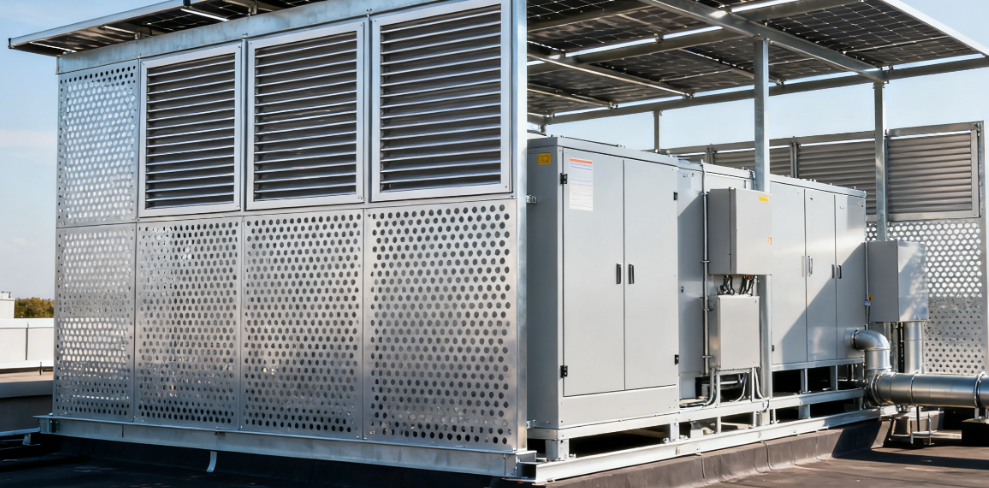

Jintong’s Metal Sunshade and Non-Continuous Ventilation Panels provide an effective retrofit solution for building transition areas such as corridors, atriums, and entryways. Designed to reduce solar heat gain, improve airflow, and minimize dust ingress, the system combines modular metal sunshade panels with strategically placed non-continuous ventilation panels. The result is enhanced occupant comfort, reduced energy load, and lower maintenance requirements. These panels are ideal for facilities with structural limitations where continuous venting is impractical, offering a modular, clip-on design that simplifies installation and future maintenance.

Product Attributes:

• Material: Aluminium 6061-T6 (4 mm) for sunshade panels; stainless steel 316 (3 mm) for ventilation panels

• Sunshade Projection: 400 mm horizontal projection, powder-coated for UV and weather resistance

• Ventilation Panel: Non-continuous slots, 100 mm spaced, balancing airflow and dust control

• Airflow Gap: 60 mm ventilated cavity behind panels for optimized convection

• Installation: Modular clip-on system; retrofit without structural modification

• Performance Benefits:

• Internal temperature drop: 12–15 °C

• Reduced stagnant air zones, improved airflow efficiency

• Maintenance intervals extended due to lower dust ingress

• Applications: Industrial corridors, atriums, transition zones, entryways
