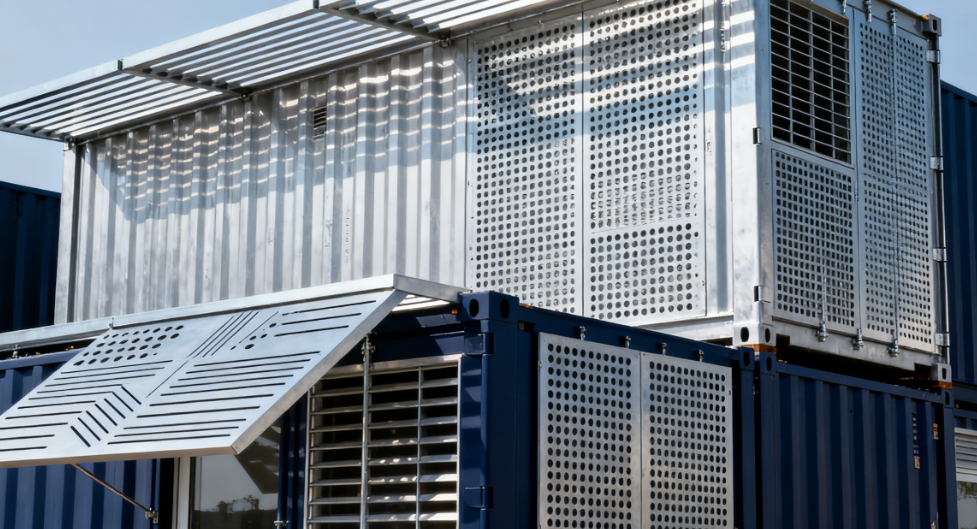

This advanced retrofit solution integrates heat-mitigating aluminum sunshade panels with micro-vent wall systems to deliver high-efficiency passive thermal control in sealed environments. Designed for clean rooms, labs, and data centers, the system combines solar load reduction with controlled cavity airflow—without compromising enclosure integrity.

✅ Product Description (Technical Attributes)

• Product Name: Heat-Mitigating Metal Sunshade + Micro-Vent Panel System

• Sunshade Material: 6063-T6 aluminum alloy

• Panel Thickness: 2.3 mm

• Perforation Rate: 12% open area (round pattern)

• Coating: 5-layer PVDF (RAL 9006, high gloss retention)

• Sunshade Fin Angle: 45°, depth 400–450 mm

• Vent Spacing: Micro-vent slats at 100 mm intervals

• Vent Opening Size: 20 mm × continuous slot

• Air Exchange Rate: ~1.1 ACH (natural convection)

• Wind Load Capacity: 1.6 kN/m² (ASTM E330, ASCE 7-22 compliant)

• Thermal Drop: Surface temperature reduction up to 18–19 °C

• Humidity Control: Supports RH stabilization from 68% to ~54%

• Drainage Design: Integrated condensate channel at base

• Installation Type: Modular retrofittable bracket system (non-invasive)

• Corrosion Resistance: ASTM B117 tested; ISO 9223 compliant

• Fire Safety: EN 13501-1, Class A2 non-combustible

• Applicable Scenarios: Clean rooms, semiconductor fabs, isolation wards, test shelters
