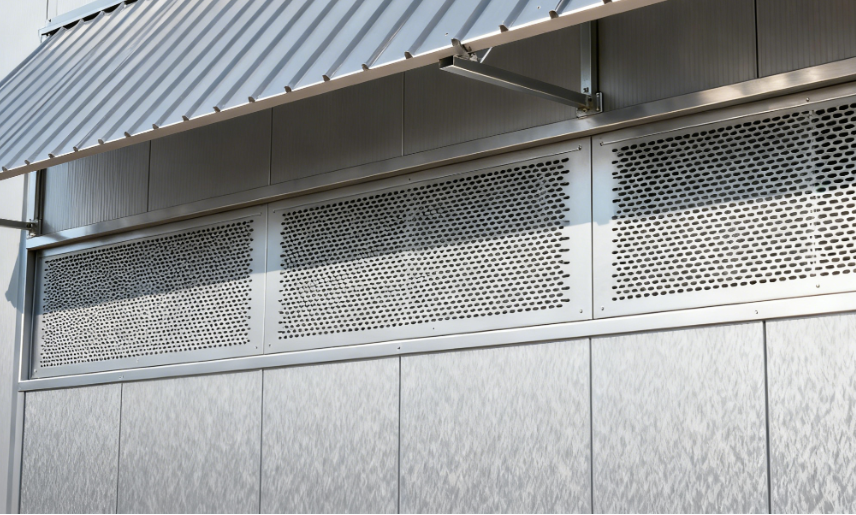

Wall-End Cladding Upgrade with Metal Sunshade and Fixed Vent Modules is a dual-function retrofit solution designed for industrial buildings with high thermal loads and airborne dust exposure. The system integrates high-durability perforated metal sunshades with directional fixed vent modules to stabilize passive airflow, reduce wall surface temperature, and extend façade service life.
🔹 Product Description
Material: 5052-H34 aluminum alloy
Panel Thickness: 4.0 mm
Perforation Ratio: 40% open area
Coating: PVDF RAL 7038 matte silver
Vent Blade Angle: 35° extruded aluminum
Mounting System: Galvanized subframe (ASTM A500 Grade C)
Anchor Type: Stainless bolts (ASTM F1554 compliant)
Cavity Depth: 250 mm from wall
Acoustic Performance: Up to 5.2 dBA noise reduction (ASA STC 36)
Thermal Drop: Reduces wall surface temperature by 12–13 °C
Corrosion Resistance: ISO 12944-6 C5-M certified
Fire Rating: ASTM E84 Class A
System Weight: 22 kg/m²
